ADC Saturation Detector

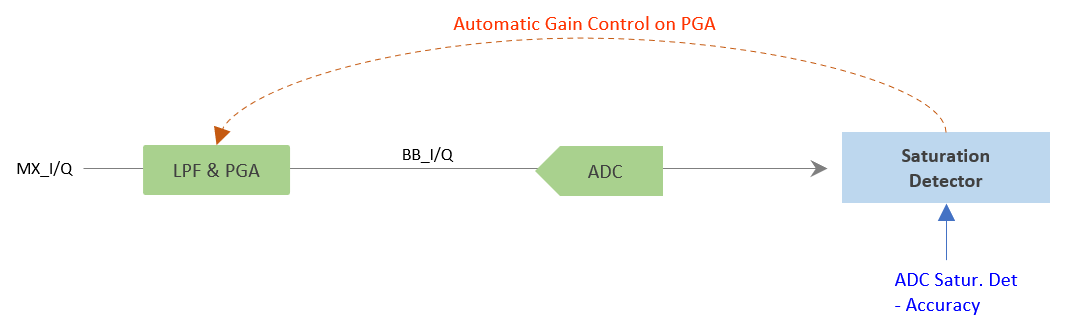

The saturation detector monitors the ADC output for clipping and dynamically adjusts the PGA gain.

Detection and Accuracy

The detector evaluates whether ADC samples reach or approach full-scale limits over a configurable sample window (accuracy).

This window defines the sensitivity of saturation detection.

Selectable accuracy values are 4, 8, 16, 32, 64, 128, and 512 samples.
