Waveform Type
Radar sensors typically use three types of chirp signals.

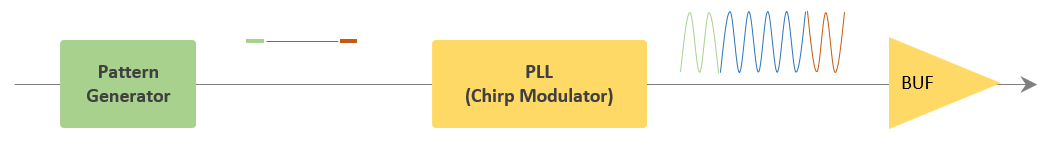

| CW |  |
|||

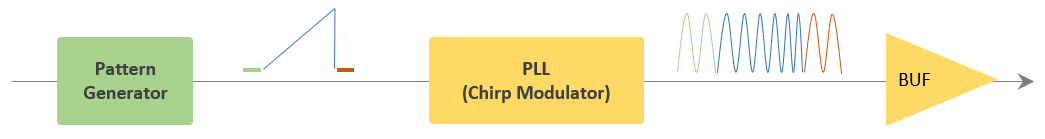

| CW+SAW |  |
|||

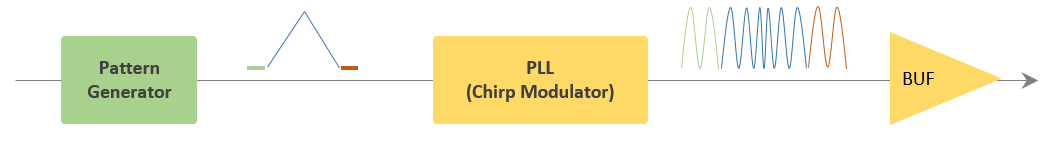

| CW+TRI |  |
|||
1. Waveform Comparison
The table describes the appropriate use and key characteristics of the three basic waveforms in radar systems.
It compares their capabilities in range, velocity, and angle detection, along with their structural features and typical applications.
| Waveform | Range | Velocity | Angle | Characteristics | Suitable Applications | |
|---|---|---|---|---|---|---|
| CW | ❌ | ✔️ | ❌ |
Very simple structure, Doppler-only |
Motion detection, Speed measurement |
|
| SAW | ✔️ | Limited | ✔️ |
Range-focused, Range-velocity coupling |
Static distance measurement, Level sensing, Simple object detection |
|
| TRI | ✔️ | ✔️ | ✔️ |
Separates range and velocity Using up/down chirps, High performance |
Tracking systems, Moving object analysis, Automotive radar |
