Velocity Resolution vs. Chirps per Frame

Velocity resolution is inversely proportional to the coherent observation time (frame time),

hence increasing frame rate degrades velocity resolution.





Velocity	Angle
	λ  wavelength of RF center frequency T_f  frame time











Increasing Vres

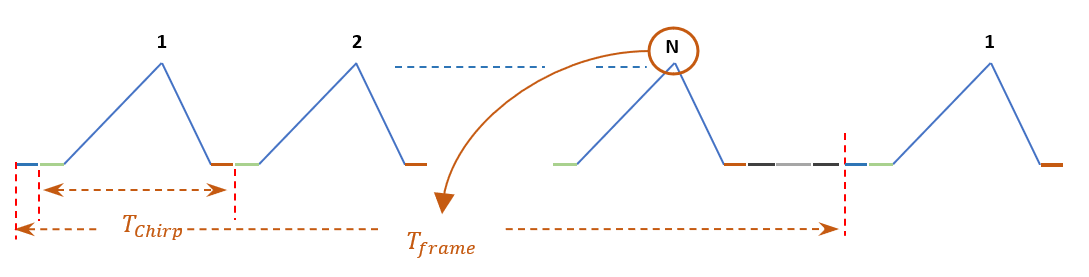

Increasing the number of chirps per frame improves velocity resolution without degrading the maximum unambiguous velocity,

as long as the chirp repetition interval (PRI/CRI) remains unchanged. However, it increases frame time and reduces update rate

















Example



Parmeter	Symbol	Value	Unit
Chirp Duration	T_c	1,000	1,000
Chirp Start Freq.	f_chirp_start	24.05	GHz
Chirp Cutoff Freq.	f_chirp_stop	24.25	GHz





32 Chirp/Frame





64 Chirp/Frame
