Range Resolution

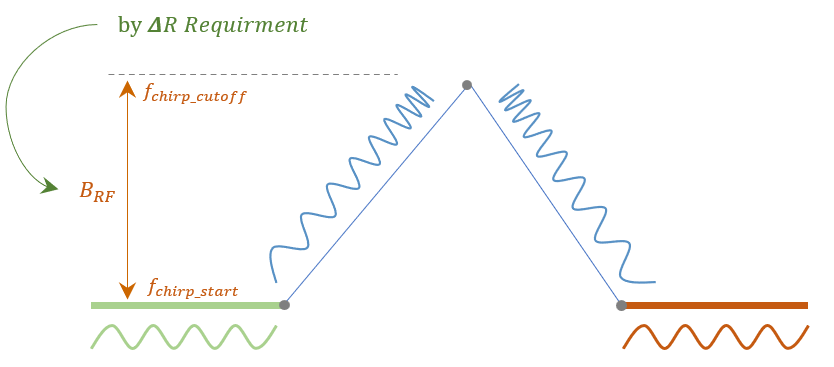

The chirp signal bandwidth determines the range resolution, not the carrier frequency (e.g., 24 GHz or 60 GHz).
Therefore, to achieve finer range resolution, the chirp signal bandwidth should be maximized within the available limits.
 |

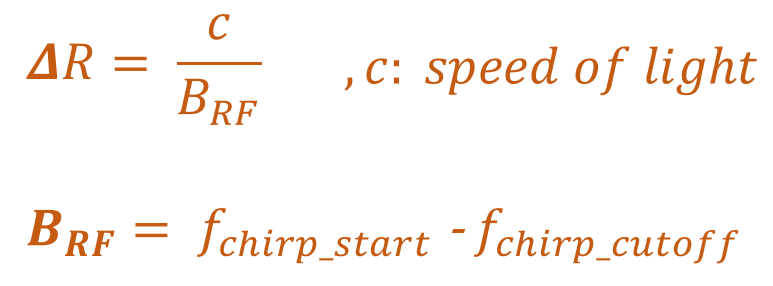

c speed of light B_RF chirp bandwidth |
||

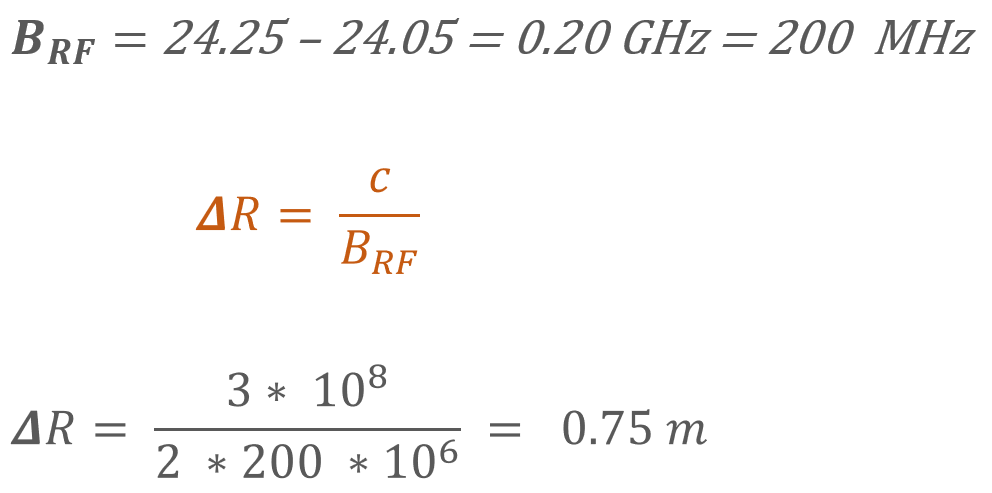

Example
| Parameter | Symbol | Value | Unit | |
| Chirp Start Frequency | f_chirp_start | 24.05 | GHz | |
| Chirp Stop Frequency | f_chirp_cutoff | 24.25 | GHz |
